jmitie::CjLinkSelector Class Reference

The base class for all link selectors. More...

#include <CjLinkSelector.hh>

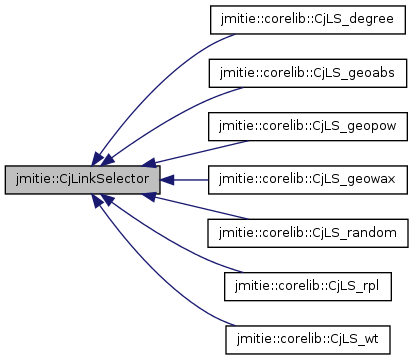

Inheritance diagram for jmitie::CjLinkSelector:

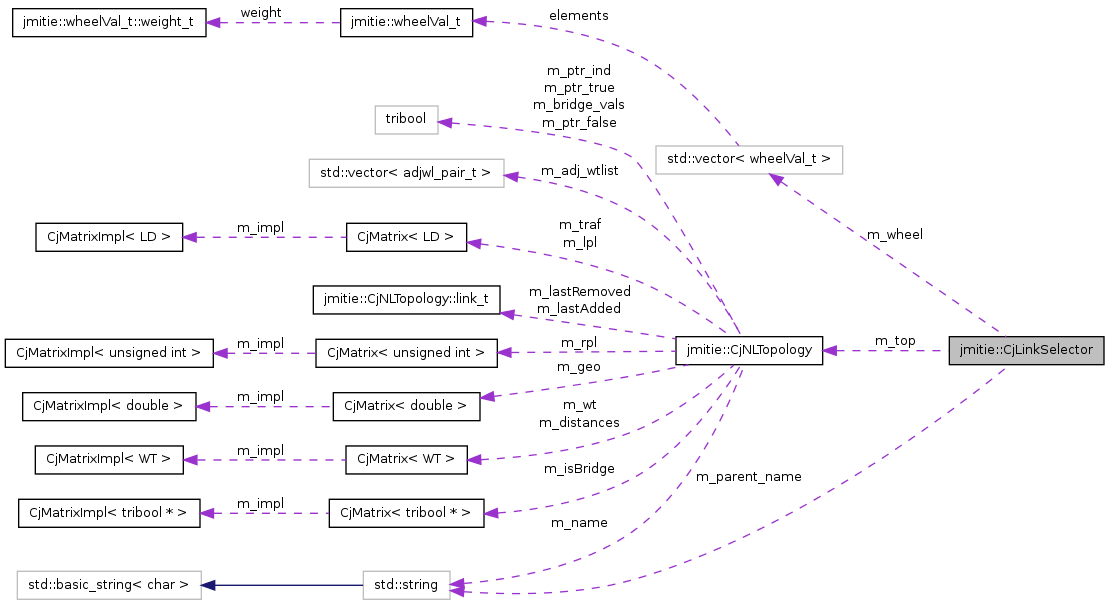

Collaboration diagram for jmitie::CjLinkSelector:

List of all members.

Public Types
typedef CjLinkSelector_ctor_va_t	ctor_va_t
typedef CjLinkSelector_select_va_t	select_arg_t
Public Member Functions
virtual std::string	getName () const =0
	Returns the free-form name of this class.
virtual std::string	getProperty (const std::string &) const =0
	Returns a property of this class.
	CjLinkSelector (const ctor_va_t &va)
	Construct a CjLinkSelector base by copying settings from the CjLinkSelector_ctor_va_t object.
virtual bool	selectLink (select_arg_t &, unsigned int &from, unsigned int &to)=0
	performs the link selection
Static Public Member Functions
static std::string	getName_static ()
	Returns the free-form name of this class (static version).
static std::string	getProperty_static (const std::string &)
	Returns a property of this class (static version).
Protected Attributes
const CjNLTopology *	m_top
	The topology that this link selector is associated with.
bool	m_add_remove
	if false then this selector will be adding a link, removing otherwise
std::string	m_parent_name
	The free-form name of the parent.
Static Protected Attributes
static std::vector< wheelVal_t >	m_wheel
	The link selection wheel.

---

Detailed Description

The base class for all link selectors.

Additional simulator functionality in the form of link selectors can be added by extending this class and overriding the selectLink(...) method. All simulation-specific constructor data should be supplied through CjLinkSelector_ctor_va_t (such as the topology object with which this selector is to associate, RNG during construction)
and instance-specific configuration such as link selector parameters to use etc.. should be specified in the free-form string argument of the constructor.

---

Member Data Documentation

std::vector<wheelVal_t> jmitie::CjLinkSelector::m_wheel [static, protected]

The link selection wheel.

In most implementations of a link selector there will be the need for roulette wheel selection to choose the link. This will most likely be implemented with a std::vector as the number of links to choose from will most likely change as the simulation progresses. Including this common functionality in the base class, and as a static minimises vector (re-)creation, re-sizing, and memory usage (because all link selectors will share the same wheel) Care must be taken to clear() the contents before use. TODO: this break MT safeness

---

The documentation for this class was generated from the following file:

• src.main/CjLinkSelector.hh
